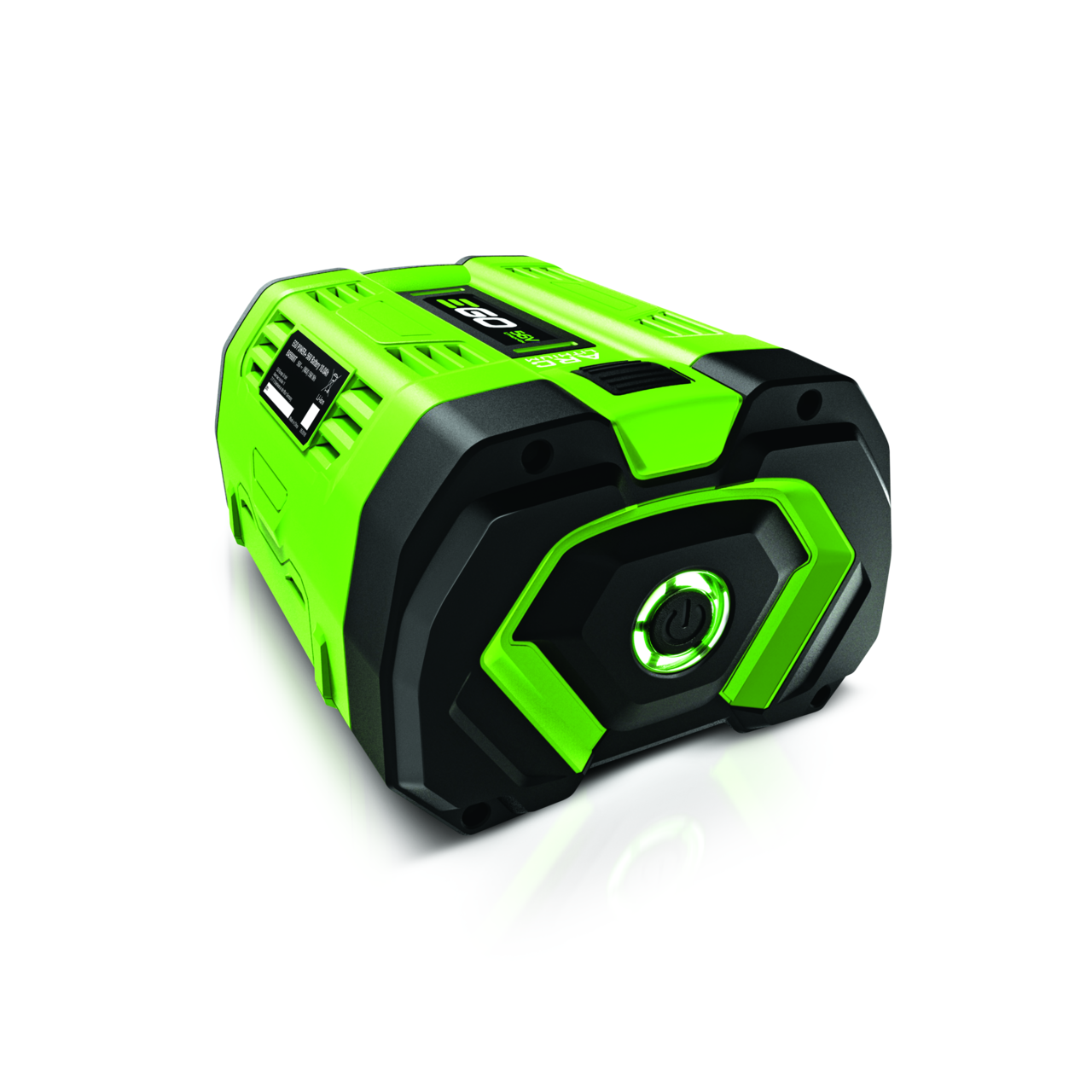

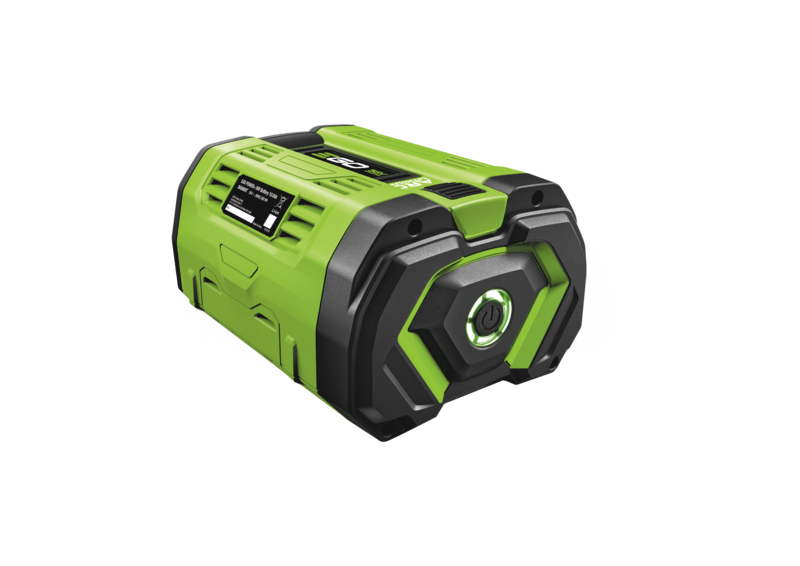

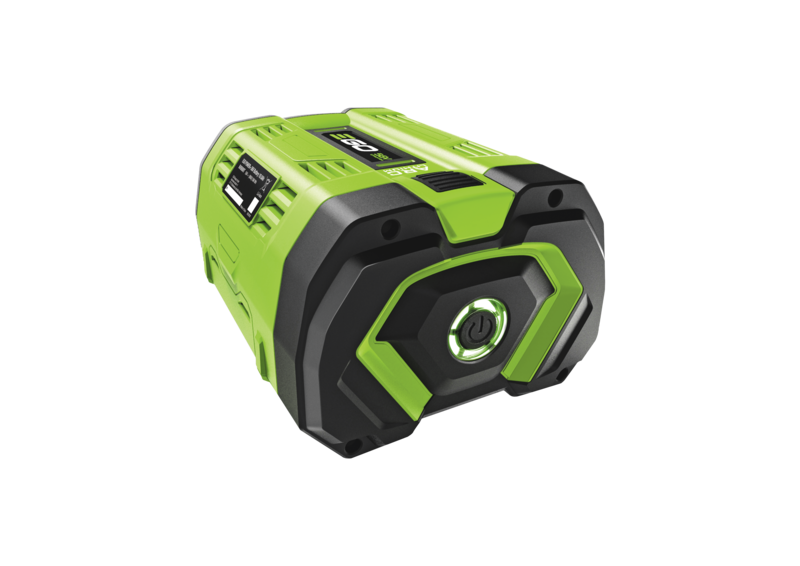

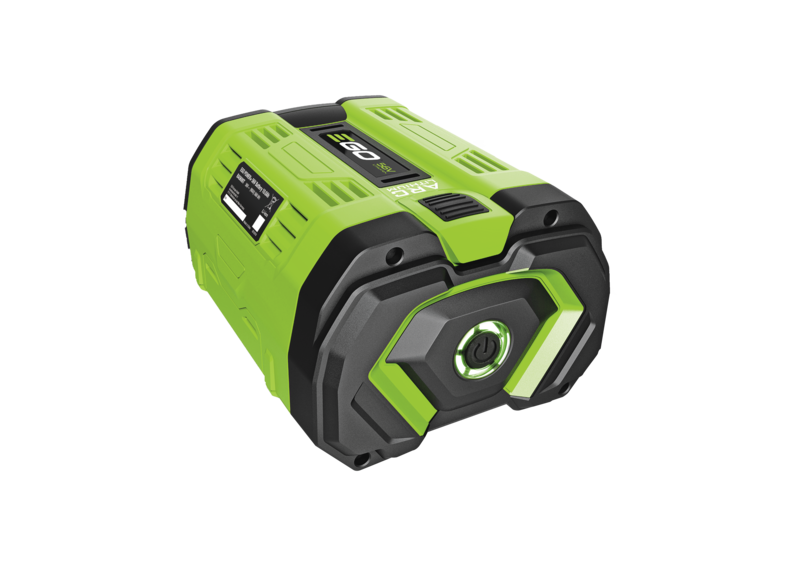

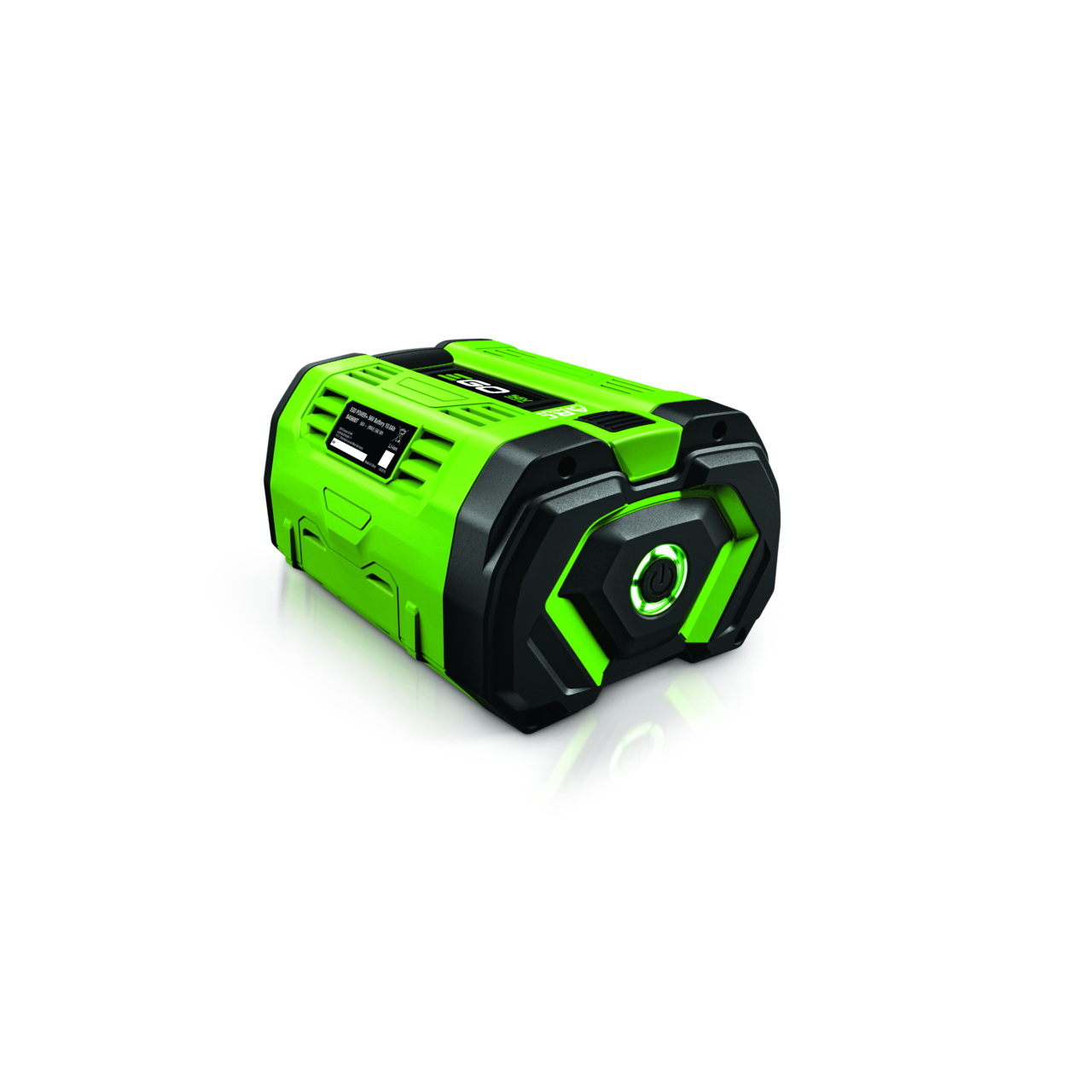

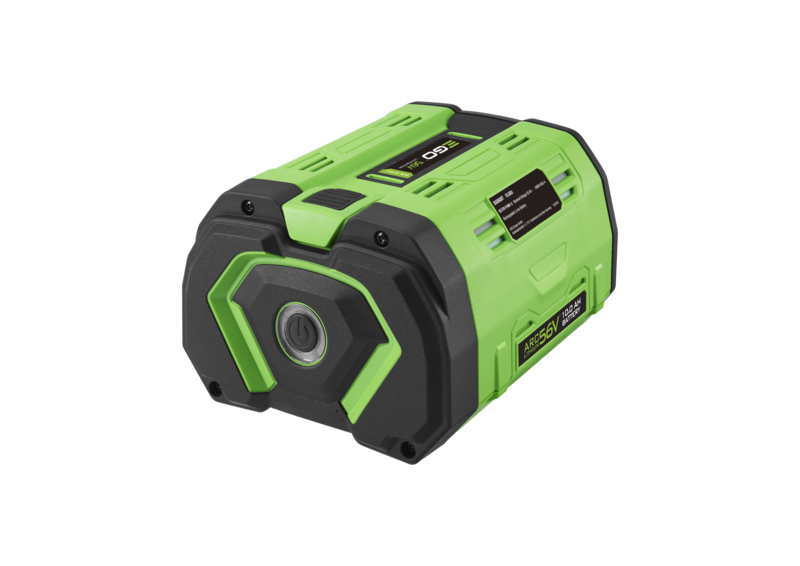

BA5600T
10.0Ah Battery
- Keep Cool technology
EGO Power+ products come with extended warranties up to five years when registered within 30 days of purchase. Read our warranty information for more details.
Full Description

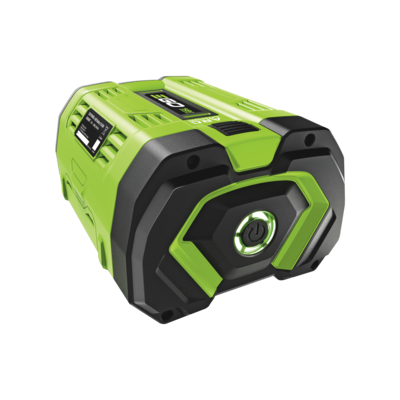

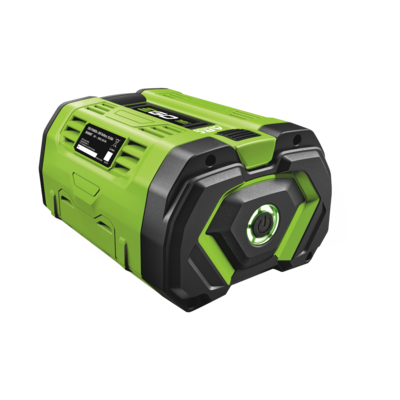

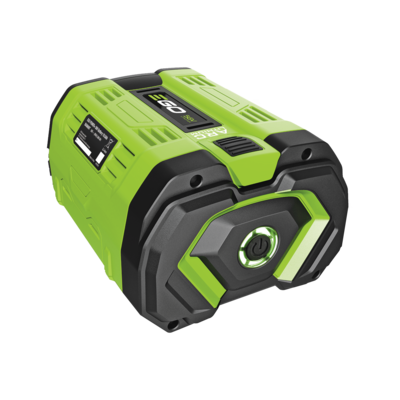

The 10.0Ah ARC Lithium™ Battery is the industry's most powerful battery. Fully equipped with an upgraded fuel gauge.

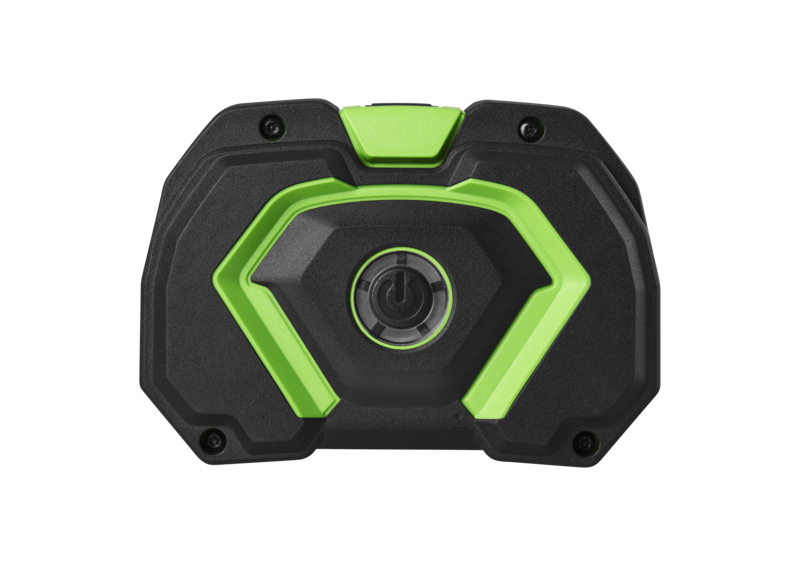

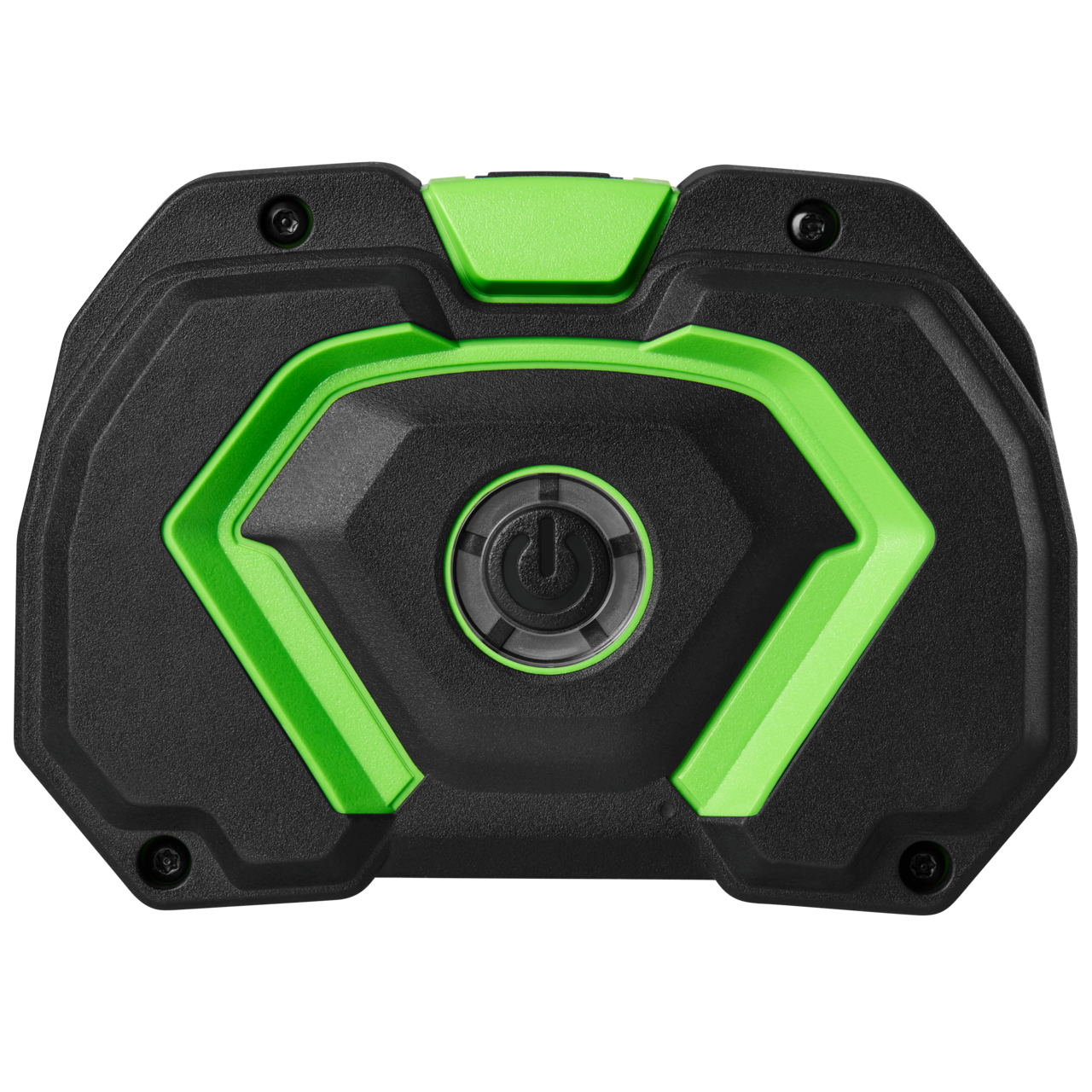

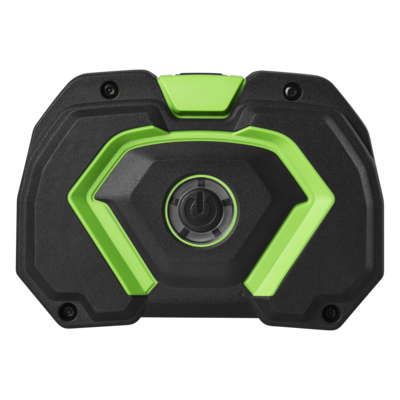

The 10.0Ah ARC Lithium™ Battery is the industry’s most powerful battery. Fully equipped with an upgraded fuel gauge, the 5 segments which wrap the power button shows you how much battery power you have left in 20% increments.
This battery packs 560Wh, and will provide this constant energy until the power is drained, meaning you won’t experience any loss of power as the battery depletes.
For this battery, the charge time with the standard charger is 190 minutes, and 70 minutes with the rapid charger.
The 10.0Ah ARC Lithium™ Battery is the industry’s most powerful battery. Fully equipped with an upgraded fuel gauge, the 5 segments which wrap the power button shows you how much battery power you have left in 20% increments.
This battery packs 560Wh, and will provide this constant energy until the power is drained, meaning you won’t experience any loss of power as the battery depletes.
For this battery, the charge time with the standard charger is 190 minutes, and 70 minutes with the rapid charger.
Product Specification
| Voltage | 56 V |
|---|---|
| Battery Power Type | Lithium-ion |
| Cell Supplier | Samsung SDI |
| Cell Model Number | UR18650NSX/INR18650-25R(5) |
| Max. Continuous Discharge Current | 80 A |
| Battery Capacity | 10 Ah |
| Battery Energy | 560 W |
| Battery Configuration | 14S4P |
| Number Of Battery Cells | 56 |
| BLE Connection | No |
| WIFI Connection | No |
| Imcompatible Charger | No |
| Max. Battery Length (mm) | 195 |
| Max. Battery Width (mm) | 157 |
| Max. Battery Height (mm) | 109 |
| Battery Weight (g) | 3400 |
| Battery Weight (lbs) | 7.5 |
